Fluoropolymer Heaters - 3HXOL - 3HX Series

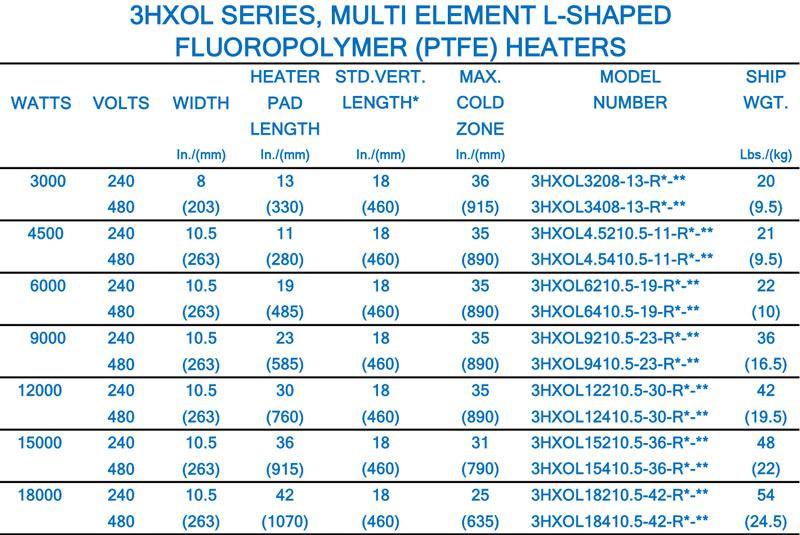

3 Phase Bottom Heater - 3HXOL Series
Product Description
Excellent chemical resistance to aggressive acids.
-
Features
- PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified (except 600 volts).
-
Specifications
- 3000 - 18000 watts
- 120 to 600 volts (600 volts on 12,000 watts or lower only)
-
Options Available (consult factory)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

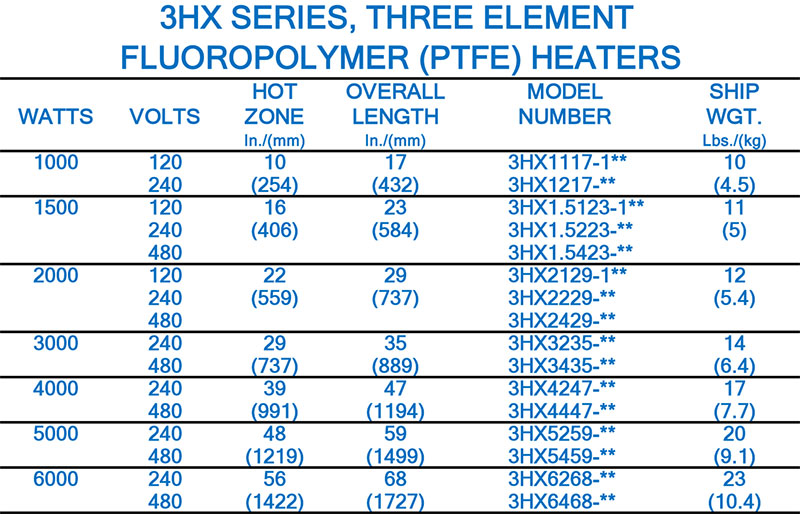

Excellent chemical resistance to aggressive acids - 3HX Series
-
Features
- PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified (except 600 volts).
-
Specifications
- 1000 - 6000 watts
- 120 to 600 volts
-
Options Available (consult factory)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths
