Immersion Heaters - Metal Heaters - LMOTS - 3LMOTS

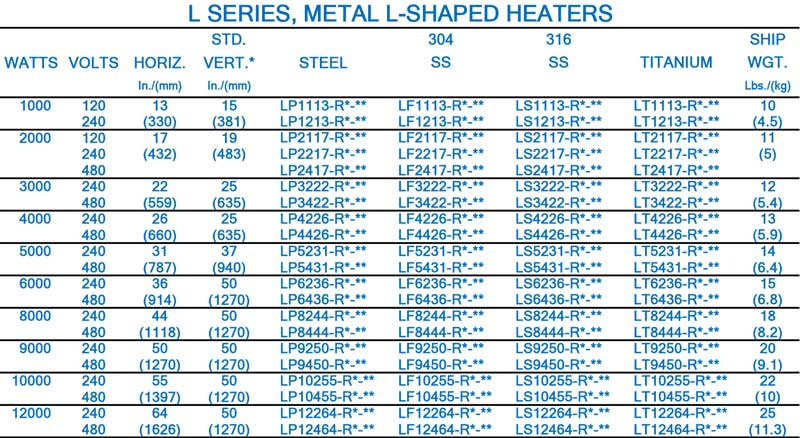

Single Metal Bottom Heater 1 or 3 Phase
Product Description
Durable, efficient chemical heater.
-
Features
- Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
- Watt densities up to 35 watts/square inch (5.4 w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus (except steel and 600 volts)
-
Specifications
- 1000 - 12000 watts
- 120 to 600 volts
-
Options Available (consult factory)
- Resettable thermal protectors
- Lower watt densities for highly viscous solutions.
- Custom configurations and lengths
- Custom wire and conduit lengths

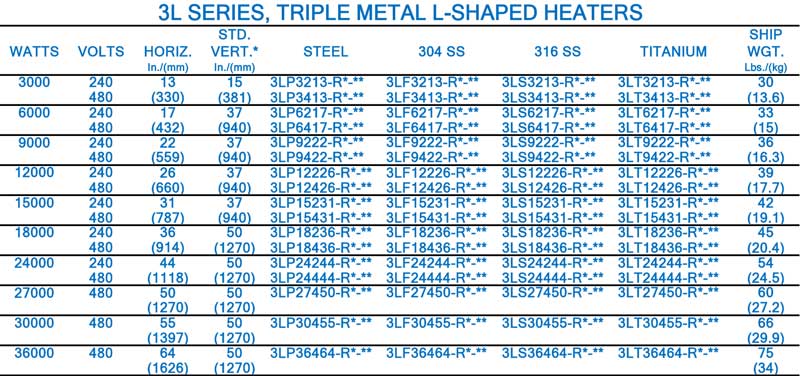

Triple Metal Bottom Style 3 Phase Heater
Product Description
Durable, efficient chemical heater.
-
Features
- Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
- Watt densities up to 35 watts/square inch (5.4 w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus (except steel and 600 volts)
-
Specifications
- 1000 - 12000 watts
- 120 to 600 volts
-
Options Available (consult factory)
- Resettable thermal protectors
- Lower watt densities for highly viscous solutions.
- Custom configurations and lengths
- Custom wire and conduit lengths
For Pricing Information Please Telephone or Email - Thank You!
