Immersion Heaters - Metal Heaters - DMOTS - D3MOTS

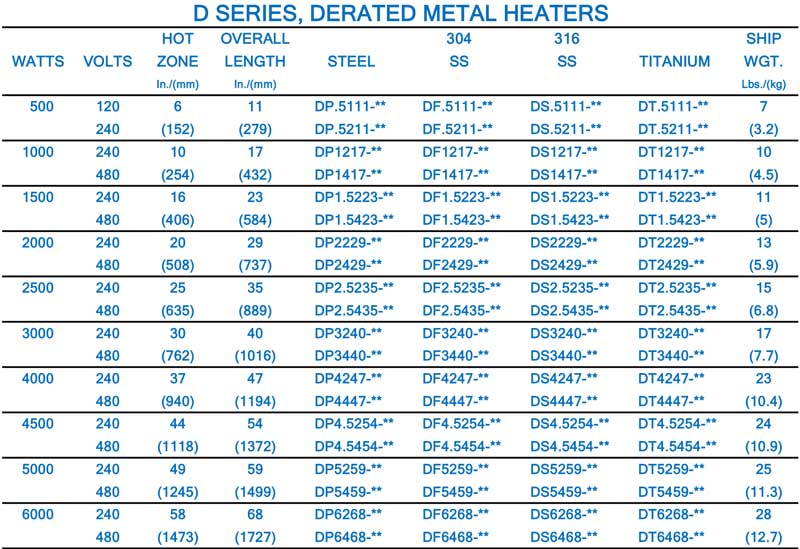

Derated Single Metal Over the Side
For concentrated alkaline or caustic solutions
Product Description
Durable, efficient chemical heater.
-
Features
- Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
- Low watt densities of 18 watts/square inch (2.8 w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus (except steel and 600 volts)
-
Specifications
- 500 - 6000 watts
- 120 to 600 volts
-
Options Available (consult factory)
- Resettable thermal protectors
- Lower watt densities for highly viscous solutions.
- Custom configurations and lengths
- Custom wire and conduit lengths

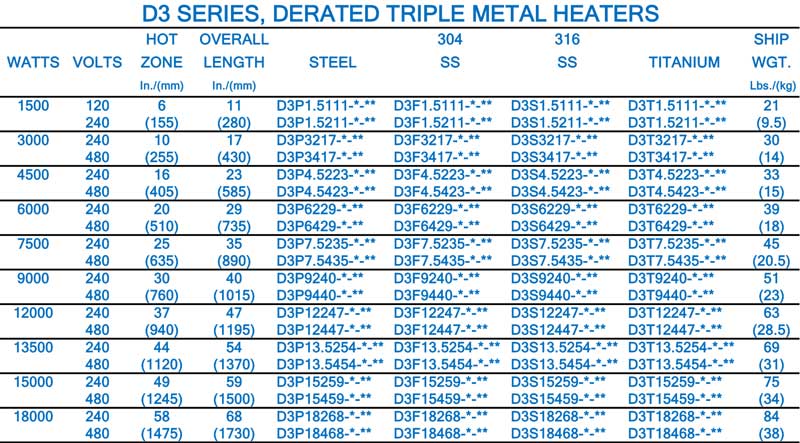

Derated Triple Metal Over the Side
3 Phase Over the Side
Product Description
Durable, efficient chemical heater.
-
Features
- Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
- Low watt densities of 18 watts/square inch (2.8 w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus (except steel and 600 volts)
-
Specifications
- 1500 - 18000 watts
- 208 to 600 volts
-
Options Available (consult factory)
- Resettable thermal protectors
- Lower watt densities for highly viscous solutions.
- Custom configurations and lengths
- Custom wire and conduit lengths
For Pricing Information Please Telephone or Email - Thank You!
